Beneficiation Equipment

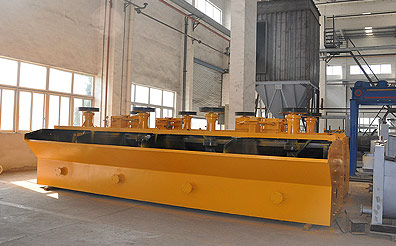

Floatation Machine

Floatation Machine

The floatation machine is major equipment for separating jobs in dressing plant and is widely used in the beneficiation process of ferrous metal, nonferrous metal, rare metals, coal preparation, and other industrials.

Application:

Floatation machine is widely used in the beneficiation process of ferrous metal, nonferrous metal, rare metals, coal preparation, and other industrials.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Specification:

Type Model Volum(m³) Capacity(m³/min) Main axle Scraper Dimension(L×W×H)(mm) Weight(kg)
Power(kw) Rotation speed(r/min) Rotation speed(r/min) Powerkw
XJ XJ-0.35 0.35 0.18~0.4 1.5 483 17.5 0.55 700×700×700 460
XJ-0.62 0.62 0.3~0.9 3 400 16 1.1 900×820×850 980
XJ-1.1 1 0.6~1.6 5.5 330 16 1.1 1100×1100×1000 1390
XJ-2.8 2.8 1.5~3.5 11 280 16 1.1 1750×1600×1100 2430
XJ-5.8 5.8 5.0~7.0 22 240 16 1.5 2200×2200×2200 3533
SF SF-1.2 1.2 0.6~1.6 5.5 330 16 1.1 1100×1100×1100 1373
SF-2.8 2.8 1.5~3.5 11 268 16 1.1 1750×1600×1150 2638
SF-4 4 2.0~4.0 15 220 16 1.5 1850×2050×1200 2583
SF-8 8 4.0~8.0 30 191 16 1.5 2200×2900×1700 4129
SF-10 10 5.0~10 30 191 16 1.5 2200×2900×1400 4486
SF-20 20 5.0~20 30×2 191 16 1.5 2850×3800×2000 9828
JJF JJF-3 3 1.0~3.0 11 360 16 1.5 1700×1600×1150 2100
JJF-4 4 2.0~4.0 11 305 16 1.5 1600×2150×1250 2350
JJF-8 8 4.0~8.0 22 233 16 1.5 2200×2900×1400 4500
JJF-10 10 5.0~10 22 233 16 1.5 2200×2900×1700 4820
JJF-20 20 5.0~20 37 180 16 1.5 2850×3800×2000 10500

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
