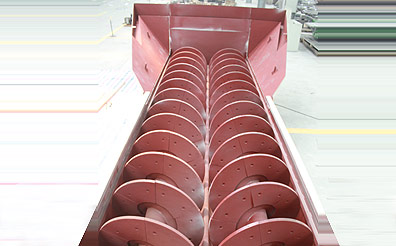

Spiral Classifier

Spiral classifier is the main equipment in mineral dressing plants, for grading ore pulp size; it is also used for desliming, dewatering and other works in sand washing. It's divided to single spiral and double spirals; according the difference of spiral's depth in overflow surface, it’s divided to high weir type and sinking type.

Application:

Spiral classifier is widely used in gravel quarry, concrete mixing stations, dry mortar, and power plant.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Specification:

Type Model Spiral Diameter(mm) Water trough length(mm) Spiral rotation speed (r/min) Capacity (t/d) Motor Power(kw) Weight(t)
Sand return Overflow Drive Hoist
High weir type FG7.5 750 5274 5.0-8.0 340-570 65 3 Manual 2.7
FG10 1000 6500 5.0-8.0 675-1080 110 5.5 Manual 4.43
FG12 1200 6500 5.0-8.0 1170-1870 155 5.5 1.5 8.7
FG15 1500 8436 4.0-6.0 1830-2740 235 7.5 2.2 12.5
FG20 2000 8400 4.0-6.0 3240-5400 400 11 2.8 20.5
FG24 2400 9210 3.6 4650-7450 580 15 3 25.6
2FG12 1200 6500 5.0-8.0 2340-5400 310 5.5×2 1.5×2 14
2FG15 1500 8436 4-6.0 3660-5480 470 7.5×2 1.5×2 21.1
2FG20 2000 8400 3.0-5.5 7780-11880 800 11×2 2.8×2 36.5
2FG24 2400 9210 3.6 13600 1160 15×2 3×2 46.8
2FG30 3000 12500 2.0-3.2 14600-23400 1785 18.5×2 4×2 73
Sinking type FC15 1500 10500 4.0-6.0 1830-2740 185 7.5 1.5 16.8
FC20 2000 12900 2.0-5.5 3895-5940 320 15 2.8 29.1
FC24 2400 14200 2.5-4.0 4650-7450 455 18.5 4 41
2FC15 1500 10500 4.0-6.0 2280-5480 370 7.5×2 1.5×2 30.7
2FC20 2000 12900 3.0-5.5 6480-11800 640 11×2 3×2 50
2FC24 2400 14200 3.67 9300-14900 910 18.5×2 3×2 67.9

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
