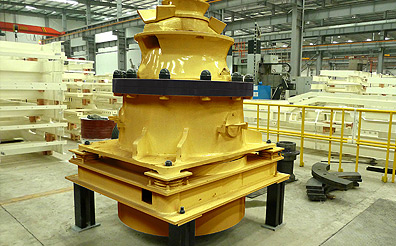

SHS Cone Crusher

SHS Cone Crusher

SHS series cone crusher is a kind of cone crusher with world advanced technology, not only provides the features of high reliability, but also with the features of high crushing efficiency, low operating cost, good shape of end products. It is widely applied in the field of mining and aggregate processing industries and it is suitable for crushing hard and mid-hard ore and rock, meanwhile, it can be used for secondary crushing, tertiary crushing and sand making.

Application:

SHS Cone crusher is widely used in metal mine, quarry, concrete batching station and glass industry. Raw materials: Iron ore, cooper ore, steel slag, slag, river stone, granite, basalt, quartz stone, diabase.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Features of SHS cone crusher
1. Optimized cavity, higher capacity and better quality
2. Hydraulic adjusting design reduces wear parts consumption and operating cost.
3. Same body structure, Easy cavities exchange
4. Advanced hydraulic technology offers easy operation and maintenance
5. Large feeding opening design improves the crushing capacity which can replace jaw crusher and be used as primary crusher.

Model & Technical Parameter of SHS cone crusher
Model Capacity(t/h) Motor Power(kw) Stroke(mm) Max Lift During Maintenance(kg) Weight(kg)
SHS100S Secondary 70-165 90 16-25 2850 7500
Tertiary 25-120 90 16-25 1650 5700
SHS200S Secondary 105-330 160 18-36 4750 12000
Tertiary 60-215 160 18-40 2850 9500
SHS300S Secondary 215-586 250 18-40 8500 22500
Tertiary 95-396 250 25-40 5150 17500
SHS500S Secondary 290-860 315 18-40 14200 36300
Tertiary 175-589 315 25-45 8600 28000
SHS700S Tertiary 350-1200 520 30-50 15600 53000
SHS800S Tertiary 380-180 600 30-50 23000 75000

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
