Belt Conveyor

Belt Conveyor

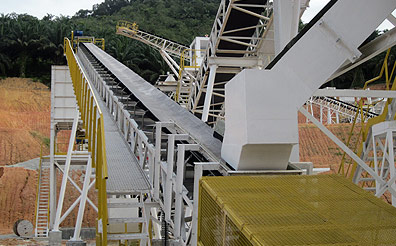

Belt conveyor is a kind of machine that to transfer the material continuously. The belt works under the effect of frictional force. It is not only the components to transfer the material, but also the components to transfer the force.

Application:

Stone production line, mining, building materials, metallurgy, chemical industry. Raw materials: All kinds of sand or stone. Capacity: 30-400t/h.

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

Application of Belt Conveyor

Belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high, transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. In many situation, it Is a very important component of nonstandard machinery.

Features of Belt Conveyor

Belt conveyors made by Sandmine machinery can be operated in the circumstance temperature range from -20 degree to 40 degree. The temperature of transferred material by this belt conveyer should be lower than 50 degree.

Specifications

Belt Width(mm) Belt Length(m)/Power(kW) Belt Speed(m/s) Capacity(t/h)
500 ≤12/3 12-20/4-5.5 20-30/5.5-7.5 1.3-1.6 45-100
650 ≤12/4 12-20/5.5 20-30/7.5-11 1.3-1.6 70-120
800 ≤10/4 10-15/5.5 15-30/7.5-15 1.3-1.6 120-180
1000 ≤10/5.5 10-20/7.5-11 20-40/11-22 1.3-2.0 160-250
1200 ≤10/7.5 10-20/11 20-40/15-30 1.3-2.0 200-400

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
