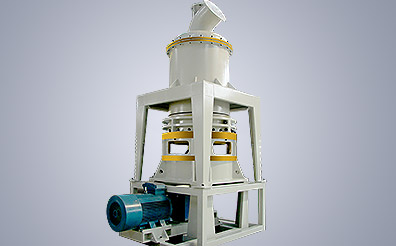

GSDF Series Micro Powder Grinding Mill

GSDF Series Micro Powder Grinding Mill

GSDF series micro powder grinding mill is the high-end grinding mill, which adopts the Germany advanced technology and standard.
It has been taking the leading position relatively owing to the product design, material selection, quality control and service standard. The micro powder grinding mill is the most suitable equipment for the customers who need the huge capacity, the intelligent system, the smallest occupation, and the continuously working ability.

Application:

Calcium carbonate powder processing factory,Other non-metal mineral superfine processing factory

Get PriceClick this button to inquiry

Contact Sandmine

For more product information and prices,click here to ask

Service Online

workingp rinciple

GSDF series micro powder grinding mill is composed of hammer crusher, elevator, storage hopper, vibrating feeder, mainframe, classifier, diffusion type double cyclone powder collector, pulse dust filter, high-pressure fan, soundproof room, muffler and etc.

There is 30-40mm gap between the pin shafts and the grinding rollers installed on the roller supports. When the roller supports revolve round the main shaft, the grinding rollers press the grinding ring due to centrifugal force. And at the same time, the grinding rollers revolve round the pin shafts due to the friction force. The raw material is quantified fed through the upper feeding tray and been throwing to all around. And the material will go through the gap between the ring and roller and be crushed and grinded by multi-layer rollers as powder under the effect of gravity. The grinded material falls down to the lower feeding tray and been blow up by the air going into the classification area. The qualified powder will enter into the final powder collecting system by classification rotor. The coarse powder will go back to the crushing and grinding chamber to re-processing again due to the centrifugal flow field action. The whole air conveying system is working under the full negative pressure condition without any powder overflow. It has the advantages of high efficiency, high classification accuracy, high reliability, nice work environment and less vibration.

technical parameter

Model GSDF32 GSDF40 GSDF50 GSDF66
Ring Diameter (mm) φ800 φ1000 φ1250 φ1680
Roller Quantity (pcs) 21 27/36 40/44 40/44
Ring Quantity (pcs) 3 3/4 4 4
Main Shaft Speed (r/min) 240 222 145 120
Feeding Size (mm) 10 10 10 10
Output Size (mm) 0.005-0.044 0.005-0.044 0.005-0.044 0.005-0.044
Capacity (t/h) 0.5-4.5 1-7 1.5-12 2-18





GSDF32

GSDF40

GSDF50

GSDF66

Grinding Mill

PowerkW

75

132

185

315

Blower

PowerkW

45

75

110

90*2

Classifier

PowerkW

18.5

30

15*4

18.5*5

Hammer Crusher

Model

GPC400×600

GPC400×600

GPC600×800

GPC600×800



PowerkW

22

22

55

55

Elevator

Model

GT210

GT210

GT210

GT250



PowerkW

3

3

5.5

5.5

Belt Conveyor

Model

300*60

300*60

400*80

400*80



PowerkW

2.2

2.2

3

3

Screw Conveyor

Model

GSC219*4.5

GSC219*6.9

GSC219*5

GSC273*8.6



PowerkW

3

4

3*2

5.5*2

Discharge Valve

Model

ZJD-200

ZJD-200 / ZJD-250

ZJD-250

 ZJD-250 / ZJD-300



PowerkW

0.75*2

0.75*1/1.1*2

1.1*2

1.1*2 / 1.5*2

Pulse Filter

Model

GDMC120

GDMC250

GDMC450

GDMC400*2

Air Compressor

Model

KSH150D

KSH300D

LG2.6/8

LG10/8



PowerkW

11

22

37

55

Overall Dimension

( mm)

13900x4000x6200

18000x4600x8600

14000x9000x10250

26300x7500x11900

Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
