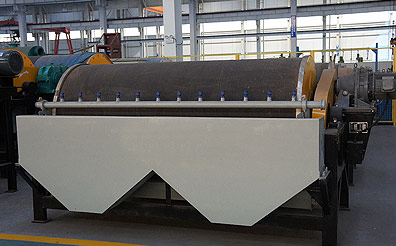

Features of Magnetic Separator
Magnetic Separator is with optimized computer design, rational magnetic circuit, strong magnetic coercive force and high-remanence permanent magnetic which can keep the magnet performance in a long period and safeguard the long -term interest of the customer, the whole structure is reliable.
Specification:
| Model | Roller size | Capacity(t/h) | Rotation Speed(rpm) | Power(Kw) | Weight(Kg) | |
| Diameter(mm) | Length(mm) | |||||
| CTB606.00 | 600 | 600 | 8-15 | 40 | 1.1 | 867 |
| CTB609.00 | 600 | 900 | 10-20 | 40 | 1.1 | 1052 |
| CTB612.00 | 600 | 1200 | 16-29 | 40 | 1.5 | 1321 |
| CTB618.00 | 600 | 1800 | 18-35 | 40 | 1.5 | 1655 |
| CTB712.00 | 700 | 1200 | 12-30 | 35 | 2.2 | 1682 |
| CTB715.00 | 700 | 1500 | 13-36 | 35 | 2.2 | 1806 |
| CTB718.00 | 700 | 1800 | 20-45 | 35 | 2.2 | 1992 |
| CTB918.00 | 900 | 1800 | 28-60 | 27 | 4 | 3162 |
| CTB924.00 | 900 | 2400 | 38-80 | 27 | 4 | 3887 |
| CTB930.00 | 900 | 3000 | 45-95 | 27 | 5.5 | 4235 |
| CTB1018.00 | 1050 | 1800 | 36-72 | 22 | 4 | 3801 |
| CTB1021.00 | 1050 | 2100 | 45-85 | 22 | 4 | 4165 |
| CTB1024.00 | 1050 | 2400 | 52-100 | 22 | 5.5 | 4319 |
| CTB1030.00 | 1050 | 3000 | 64-125 | 22 | 7.5 | 4976 |
| CTB1218.00 | 1200 | 1800 | 55-95 | 19 | 7.5 | 5263 |
| CTB1224.00 | 1200 | 2400 | 65-110 | 19 | 7.5 | 5927 |
| CTB1230.00 | 1200 | 3000 | 85-120 | 19 | 7.5 | 6325 |
| CTB1530.00 | 1500 | 3000 | 95-160 | 16 | 11 | 8665 |
| CTB1540.00 | 1500 | 4000 | 120-190 | 16 | 11 | 9871 |
Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
