According to the different crushing demand, we can design different solution: crushing firstly and then screening, or screening firstly and then crushing. The stone crushing station can be assembled as primary crushing and secondary crushing and also can be assembled as primary crushing, intermediate crushing, and tertiary crushing, each of which is so flexible and can be used individually. It can satisfy the customers' various demands fully.

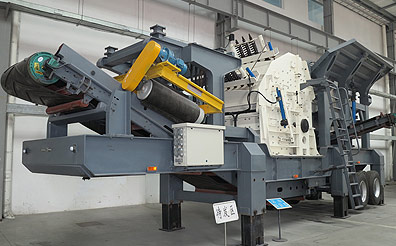

Features OF mobile impact crushing plant
1. Low transportation cost:
Compact structure, hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small, which is very convenient to be transported on highway and moved at crushing sites.
2. Flexible configuration and great adaptability:
Each of mobile crushing station can be used individually, and can be composed of two-stage plants or three-stage plants with different requirements.
3. Complete set of equipment:
Installation form of complete set of equipment eliminates installation operation of segregate sets on complicated spot. Waste of material and labor hour is reduced as well.
4. Reduced transportation cost of material:
Mobile crushing station can crush raw material on spot, so the crushing process of raw material far from spot can be avoided, so the transportation cost of material is greatly reduced. Moreover, the lengthened station can send crushed material to the transferring wagon to transfer the material.
5. Stable performance and easy maintenance:
All machines for mobile crushing plant, which the design have been optimized that results in higher strength, better performance and more compact structure. And the intelligent humanization design let maintenance quickly and conveniently.
Technical data :
| Model | MW-P10S | MW-P12S | MW-P14S | MW-P15S |
| Transportation length (mm) | 11000 | 11900 | 11900 | 13500 |
| Transportation width (mm) | 2450 | 2550 | 2650 | 2780 |
| Transportation height (mm) | 3900 | 4000 | 4000 | 4150 |
| Max. length(mm) | 12000 | 12100 | 12100 | 13300 |
| Max. width (mm) | 2800 | 2900 | 2950 | 2950 |
| Max. height (mm) | 4400 | 4433 | 4433 | 4810 |
| Weight (T) | 30 | 35 | 38 | 47 |
| Tire configuration | Dualaxial | Dualaxial | Triaxial | Triaxial |
| Impact crusher | PF-1010 | PF-1210 | PF-1214 | PF-1315 |
| Max. feeding size (mm) | 300 | 300 | 300 | 350 |
| Capacity (T/h) | 50-250 | 70-300 | 90-400 | 120-450 |
| Main belt conveyer | B650X7M | B800X8.5M | B1000X9M | B1000X9M |
| Vibrating screen | 3YZS1548 | 3YZS1848 | 3YZS1860 | 3YZS2160 |
Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
