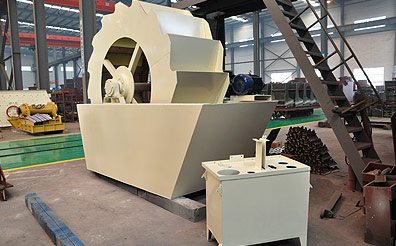

Application of SDX sand washing machine
The bucket wheel sand washer manufactured by Sandmine machinery can clean and separate stone powder and dust from dinas. Its novel seal structure and reliable gearing ensure the cleaning and dehydration effects. The sand washer is a kind of high efficiency sand washing equipment operated with sand maker. This series of sand washer features the following advantages: rational structure, convenient maintenance, great handling capacity, low power consumption and high washing cleanliness.
Features of SDX sand washing machine
1. The sand washer has high washing cleanliness and causes no pollution or little sand loss during the washing process;
2. Designed with rational structure, novel seal structure, totally enclosed oil bath type gearing and adjustable overflow weir plate;
3. Easy to maintain and convenient to operate.
Specifications
| Model | Wheel Size (mm) | Max feed size (mm) | Power (kW) | Weight (t) | Capacity (t/h) | Overall dimension (mm) |
| SDX2610 | Φ2600×1000 | 10 | 5.5 | 2.7 | 20-50 | 3255×1982×2690 |
| SDX2816 | Φ2800×1600 | 10 | 11 | 3 | 30-60 | 3540×3000×2880 |
| SDX3016 | Φ3000×1600 | 10 | 15 | 3.3 | 50-100 | 3845×3000×3080 |
Note: The production is based on open-circuit condition when bulk density of feeding is 1.6t/ m3. It is also relative to physics character,type of feeding, input size and composition etc. Sandmine machinery reserves all rights to change data without notice.
